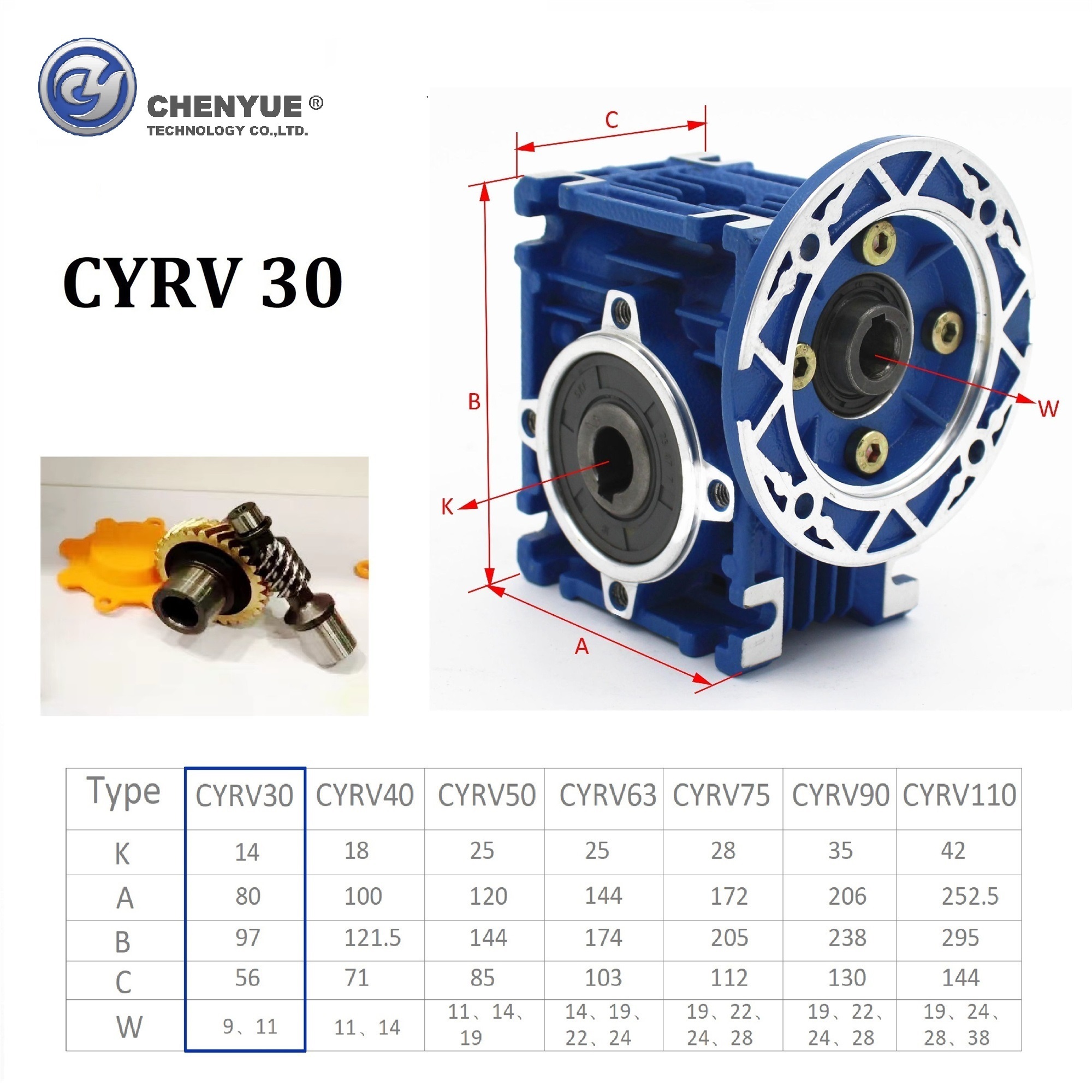

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRV30 + CYRV50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRV30 + CYRV50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE

90.98 - 120.96 USD ($)/Piece

Get a Price/Quote

Product Details:

Width 43 Centimeter (cm)
Color blue,green,gray
Product Type CYPC60 1.1 KW Worm Gearbox
Size 49.5*43*55.5
Height 55.5 Centimeter (cm)
Length 49.5 Centimeter (cm)
Weight 10 Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRV30 + CYRV50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Price And Quantity

Minimum Order Quantity 3 Piece
Price Range 90.98 - 120.96 USD ($)/Piece

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRV30 + CYRV50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Product Specifications

Material Other
Processing Type Die Casting
Height 55.5 Centimeter (cm)
Length 49.5 Centimeter (cm)
Gearing Arrangement Worm
Color blue,green,gray
Gear Type Worm Gears
Width 43 Centimeter (cm)
Size 49.5*43*55.5
Gear Tooth Profile Other
Product Type CYPC60 1.1 KW Worm Gearbox
Efficiency High
Usage Industrial
Output Torque Customizable N-m
Weight 10 Kilograms (kg)
Rated Power Customizable

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRV30 + CYRV50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Trade Information

Supply Ability 500 Piece Per Month
Delivery Time 1 Months
Packaging Details Carton+Catalogue+Manual+PE Plastic Bag+QC Certificate+Anti-bump Filler+Desiccant+Engineering Plastic Tray
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

Key features

and other high-end motors can be installed together with our gearboxes to be sold
Factory outlet
Speed ratio range:From300:1to6400:1
Input shaft/hole: Customizable
Output shaft/hole: Customizable
Colors:Blue or gray or according to customer require
Die-cast aluminum alloy housing
Worm wheel adopts high quality Tin Bronze
Certification:RoHS/CE/IAF/CNAS /ISO9001/45001/14001
Bipolar reducers: available
Flange: round or square Customizable
Mounting orientation: AS1.AS2.BS1.BS2.VS1.VS2.PS1.PS2
Delivery time: 50 days
Approximate gross weight: 10 KGS

Key benefits

Good heat dissipation
Low temperature rise
Low noise, smooth operation
Long service life and more durability
Energy saving and high efficiency
Can be installed in any position and in all directions
Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free

Tip:

The whole worm gearbox is warranted for one year
The starting date of the warranty period is subject to the date of the
product invoice, please present the invoice when repairing.
Beyond the warranty period or does not belong to the free warranty
products, the company's maintenance center is still dedicated to serve you.
Contact an account manager with any problem.
