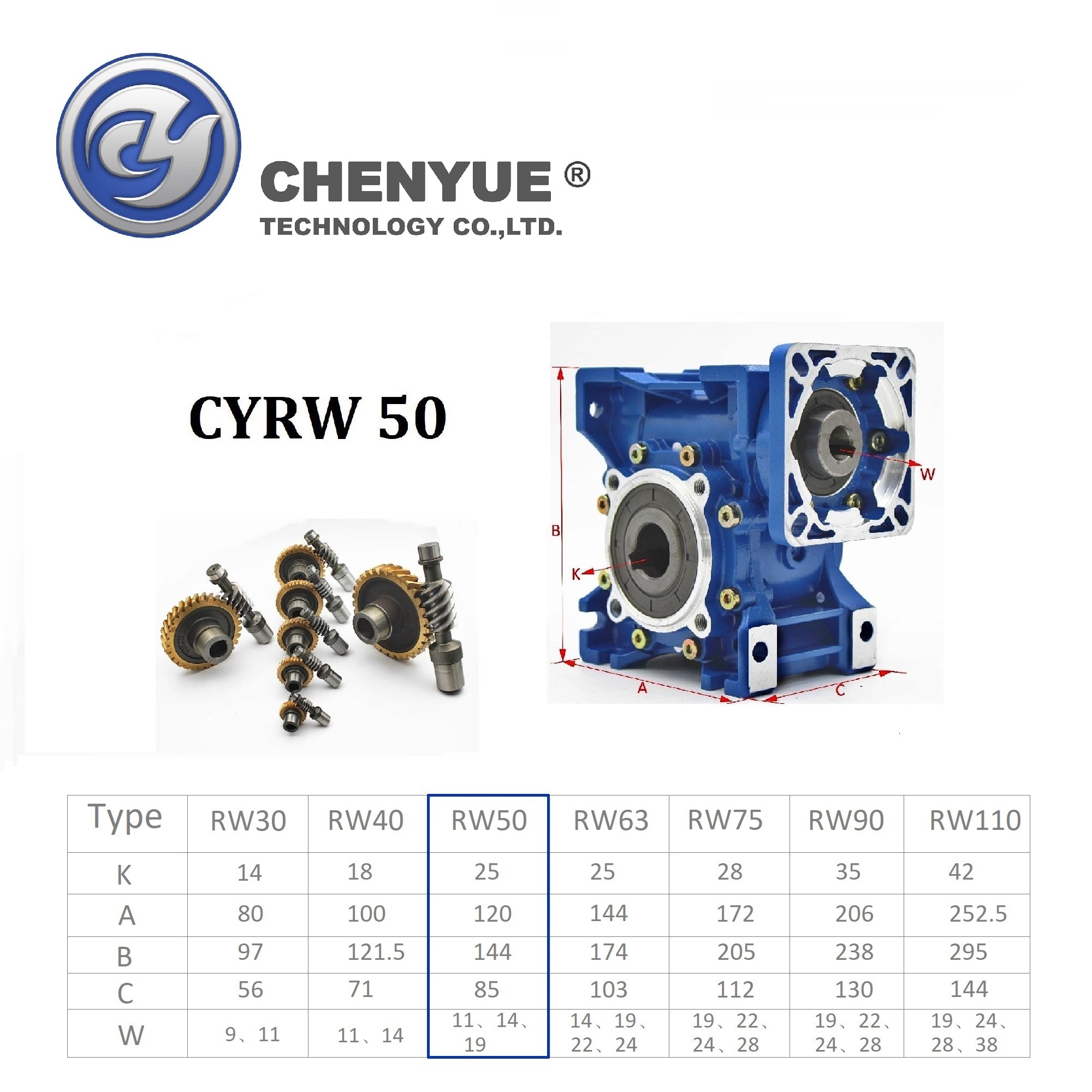

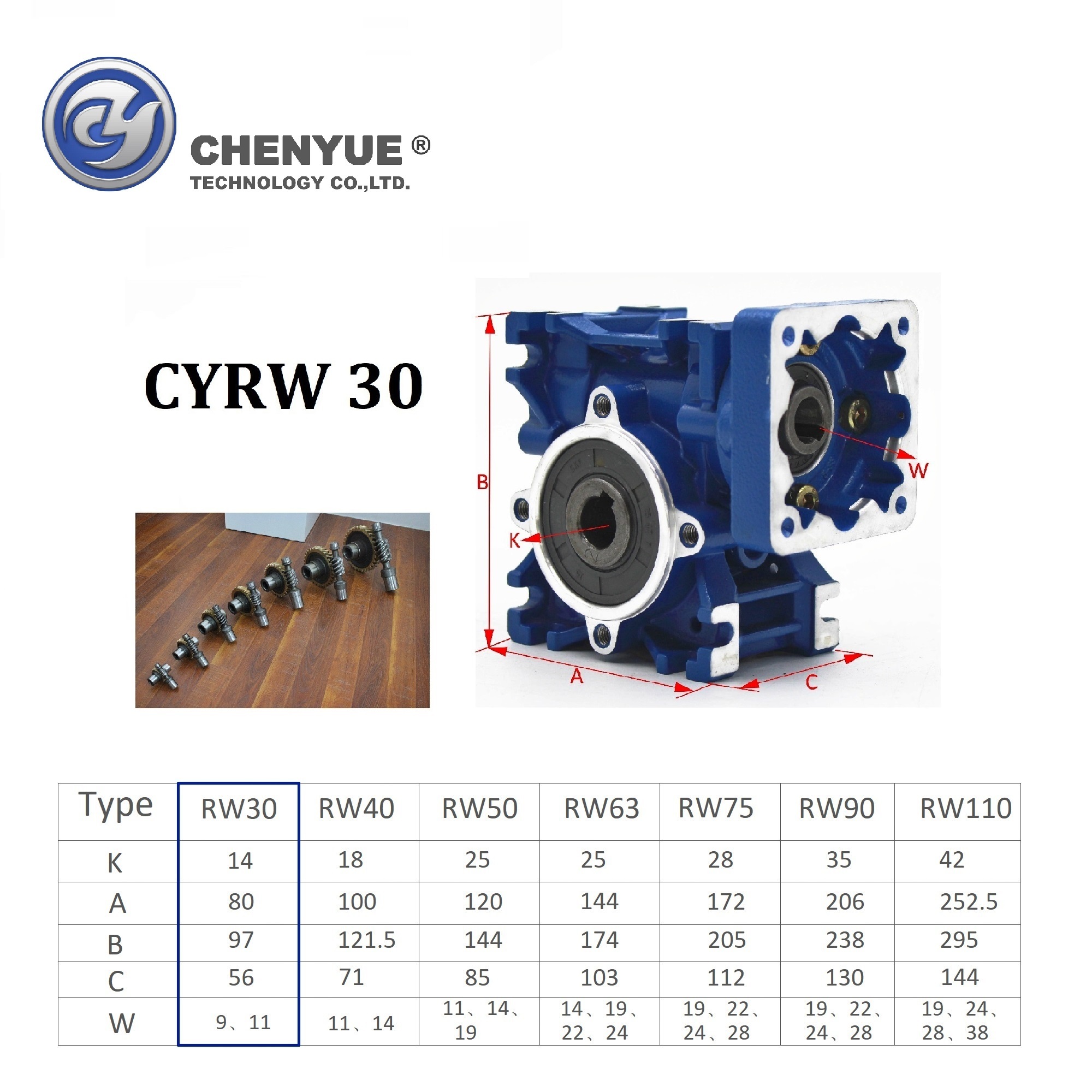

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE

210.98 - 240.96 USD ($)/Piece

Get a Price/Quote

Product Details:

Usage industrial
Size 49.5*43*55.5
Height 55.5 Centimeter (cm)
Product Type DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50
Weight 6.5 Kilograms (kg)
Length 49.5 Centimeter (cm)
Color blue,green,gray
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Price And Quantity

Price Range 210.98 - 240.96 USD ($)/Piece
Minimum Order Quantity 3 Piece

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Product Specifications

Height 55.5 Centimeter (cm)
Rated Power Customizable
Output Torque Customizable N-m
Usage industrial
Size 49.5*43*55.5
Efficiency High
Gear Tooth Profile Other
Gearing Arrangement Worm
Material Other
Weight 6.5 Kilograms (kg)
Width 43 Centimeter (cm)
Length 49.5 Centimeter (cm)
Color blue,green,gray
Product Type DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50
Processing Type Die Casting
Gear Type Worm Gears

CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300:1TO6400:1 CUSTOMIZABLE Trade Information

Payment Terms Delivery Point (DP) Telegraphic Transfer (T/T) Letter of Credit (L/C)
Supply Ability 500 Piece Per Month
Delivery Time 1 Months
Packaging Details Carton+Catalogue+Manual+PE Plastic Bag+QC Certificate+Anti-bump Filler+Desiccant+Engineering Plastic Tray
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

Key features

ABB and other high-end motors can be installed together with our gearboxes to be sold
Factory outlet
Single-stage worm gearbox bearing capacity is not up to the demand, you can choose double-stage worm gearbox combination.
Double-stage worm gearbox combination increasesworm gearbox load carrying capacity
Speed ratio range: From300: 1to6400: 1
Input shaft/hole: Customizable
Output shaft/hole: Customizable
Colors: Blue or gray or according to customer require
Die-cast aluminum alloy housing
Worm wheel adopts high quality Tin Bronze
Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001
Bipolar reducers: available
Flange: round or square Customizable
Mounting orientation: AS1.AS2.BS1.BS2.VS1.VS2.PS1.PS2
Delivery time: 50 days
Approximate gross weight: 6.5 KGS

Key benefits

Good heat dissipation
Low temperature rise
Low noise, smooth operation
Long service life and more durability
Energy saving and high efficiency
Can be installed in any position and in all directions
Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free

Tip:

The whole worm gearbox is warranted for one year
The starting date of the warranty period is subject to the date of the
product invoice, please present the invoice when repairing.
Beyond the warranty period or does not belong to the free warranty
products, the companys maintenance center is still dedicated to serve you.
Contact an account manager with any problem.

FAQs of CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50 SPEED RATIO FROM 300: 1TO6400: 1 CUSTOMIZABLE:

Q: What is the speed ratio range of the CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50?

A: The speed ratio range of this product is from 300: 1 to 6400: 1, which makes it highly customizable for various industrial applications.

Q: What are the dimensions of this gear reducer?

A: The length of this gear reducer is 49.5 cm, the width is 43 cm, and the height is 55.5 cm. The size of the product is 49.5*43*55.5 cm.

Q: What is the weight of the CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50?

A: The weight of this product is 6.5 kg, which makes it easy to handle and install.

Q: What type of processing is used for this gear reducer?

A: This gear reducer is made using die casting, which ensures high precision and durability.

Q: What is the efficiency of the CHENYUE DOUBLE-STAGE WORM GEAR REDUCER CYRW30 + CYRW50?

A: This gear reducer is designed for high efficiency, which makes it suitable for various industrial applications. Its efficiency is one of its key features, making it a reliable and durable product.
