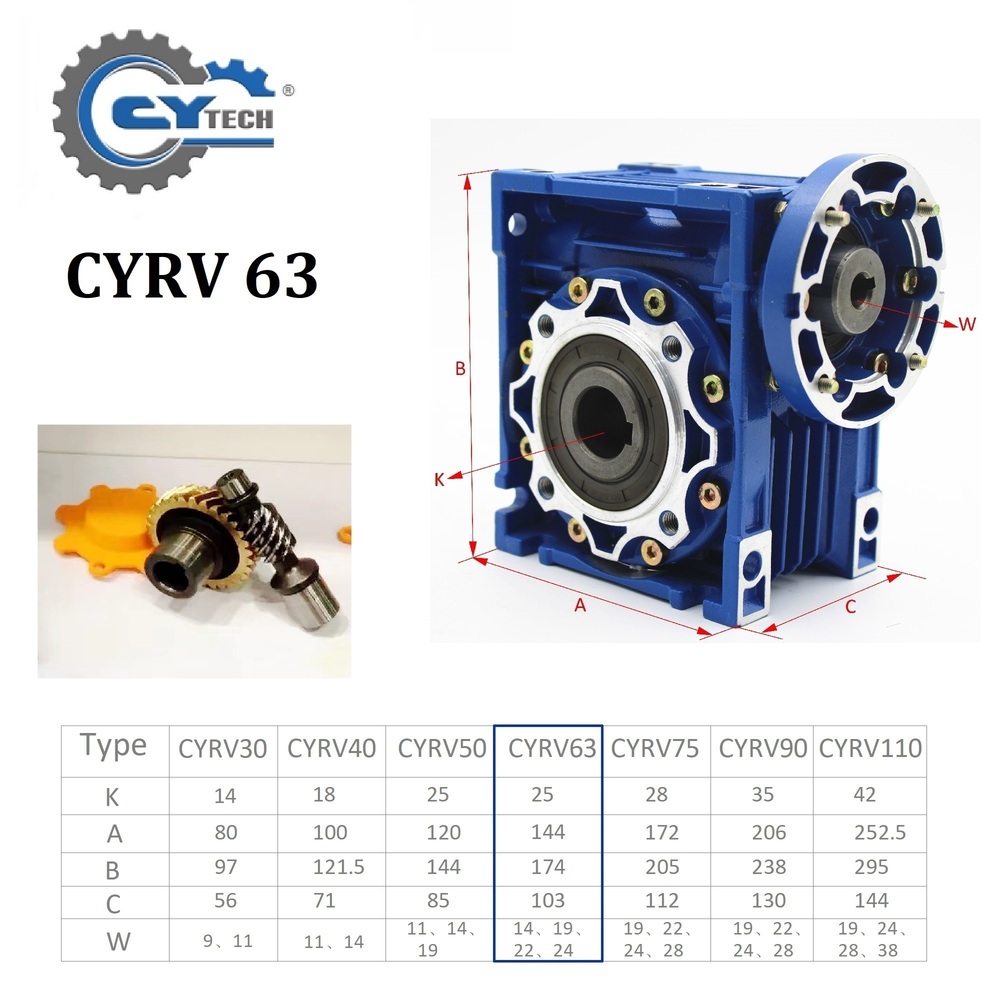

CHENYUE Worm Gear Reducer NMRV063 NMRV 63 Input 14/11/19mm Output 25mm Speed Ratio from 5:1 to 100:1 Speed Reducer Reduction Box

CHENYUE Worm Gear Reducer NMRV063 NMRV 63 Input 14/11/19mm Output 25mm Speed Ratio from 5:1 to 100:1 Speed Reducer Reduction Box

66.99 USD ($)/Piece

Get a Price/Quote

Product Details:

Length 29 Centimeter (cm)
Product Type CYRV63 1.5 KW Worm Gearbox
Weight 7.9 Kilograms (kg)
Width 25.5 Centimeter (cm)
Height 33 Centimeter (cm)
Color blue,green,gray
Size 29*25.5*33
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CHENYUE Worm Gear Reducer NMRV063 NMRV 63 Input 14/11/19mm Output 25mm Speed Ratio from 5:1 to 100:1 Speed Reducer Reduction Box Price And Quantity

Minimum Order Quantity 3 Piece
Price 66.99 USD ($)/Piece

CHENYUE Worm Gear Reducer NMRV063 NMRV 63 Input 14/11/19mm Output 25mm Speed Ratio from 5:1 to 100:1 Speed Reducer Reduction Box Product Specifications

Gear Tooth Profile Other
Size 29*25.5*33
Output Torque 50N-m-167N-m N-m
Usage Industrial
Rated Power 0.25kW-1.5kW
Gearing Arrangement Worm
Gear Type Worm Gears
Length 29 Centimeter (cm)
Efficiency High
Material Other
Product Type CYRV63 1.5 KW Worm Gearbox
Weight 7.9 Kilograms (kg)
Height 33 Centimeter (cm)
Width 25.5 Centimeter (cm)
Processing Type Die Casting
Color blue,green,gray

CHENYUE Worm Gear Reducer NMRV063 NMRV 63 Input 14/11/19mm Output 25mm Speed Ratio from 5:1 to 100:1 Speed Reducer Reduction Box Trade Information

Payment Terms [ ]
Supply Ability 500 Piece Per Month
Delivery Time 45 Days
Sample Policy [ N e o n ]
Packaging Details Carton+Catalogue+Manual+PE Plastic Bag+QC Certificate+Anti-bump Filler+Desiccant+Engineering Plastic Tray
Main Export Market(s) [ ]
Main Domestic Market [ ]
Certifications CE/RoHS/IAF/CNAS/ISO9001/ISO45001/ISO14001

Product Description

Key features

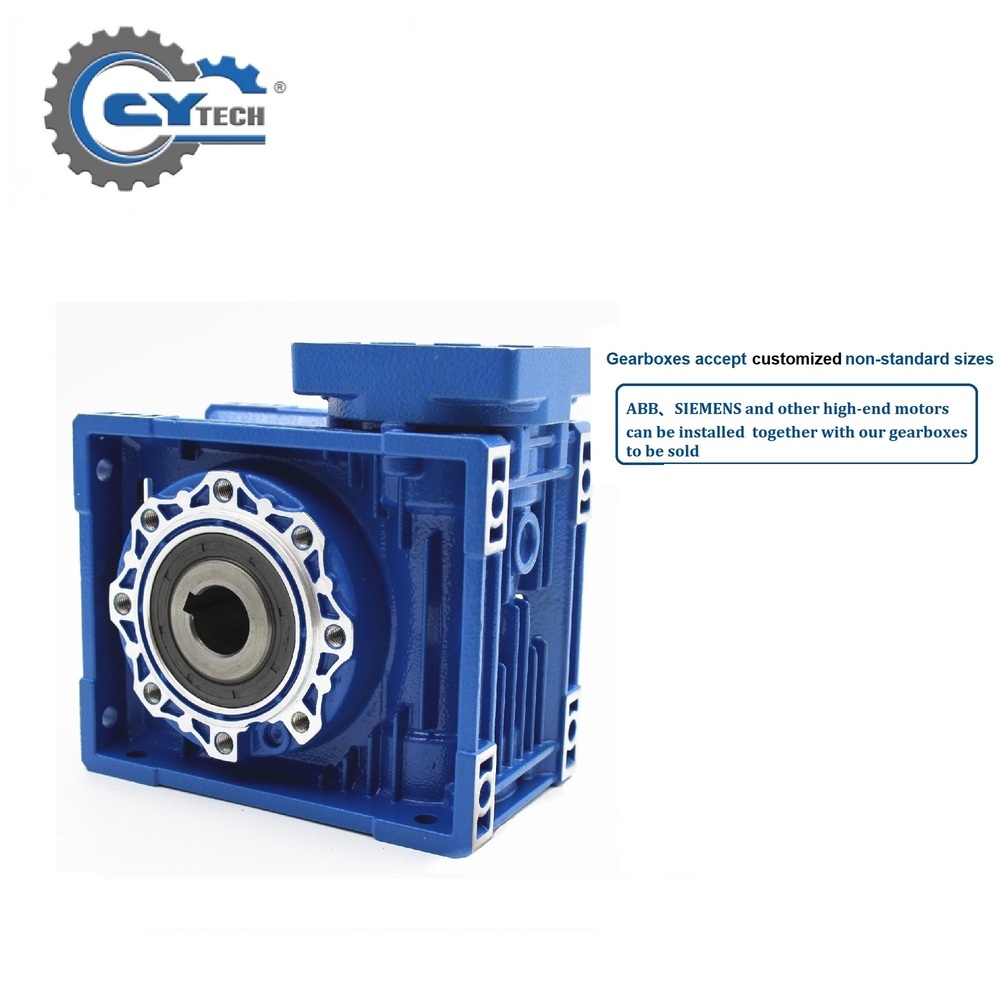

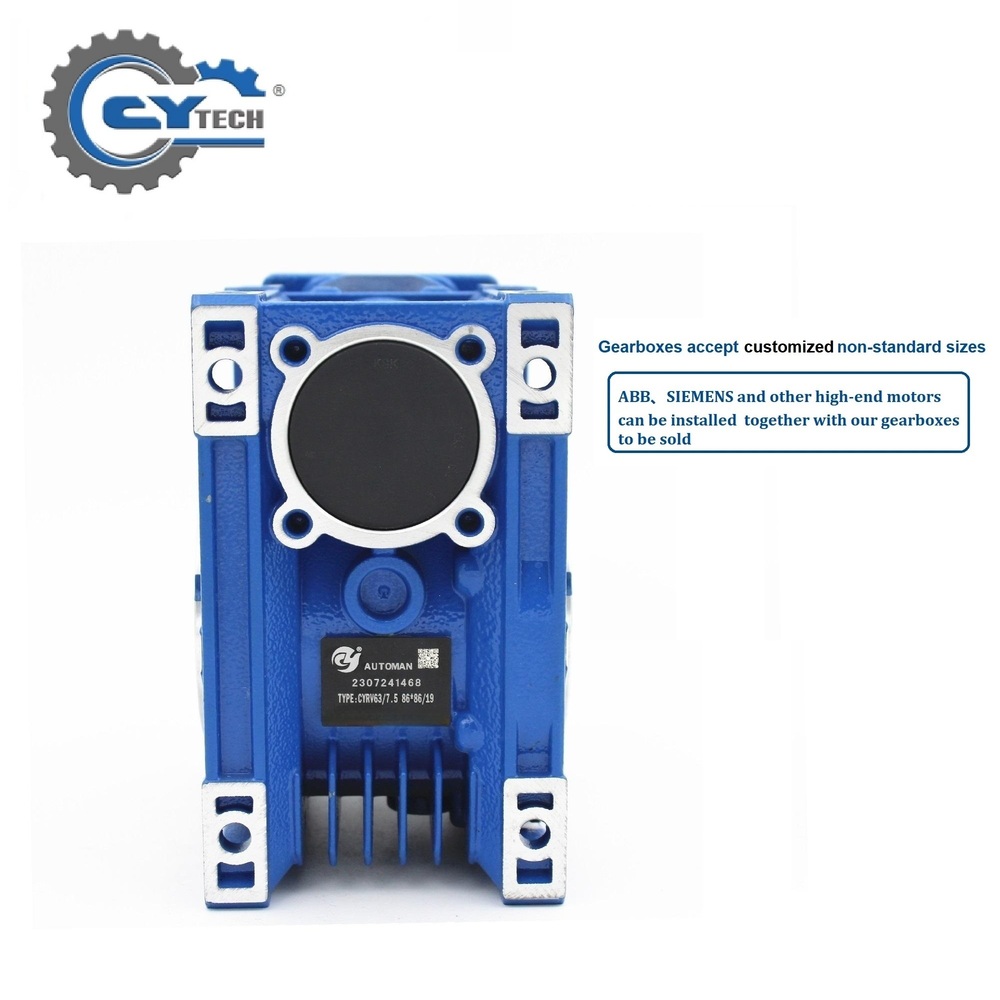

ABBSIEMENS and other highend motors can be installed together with our gearboxes to be sold

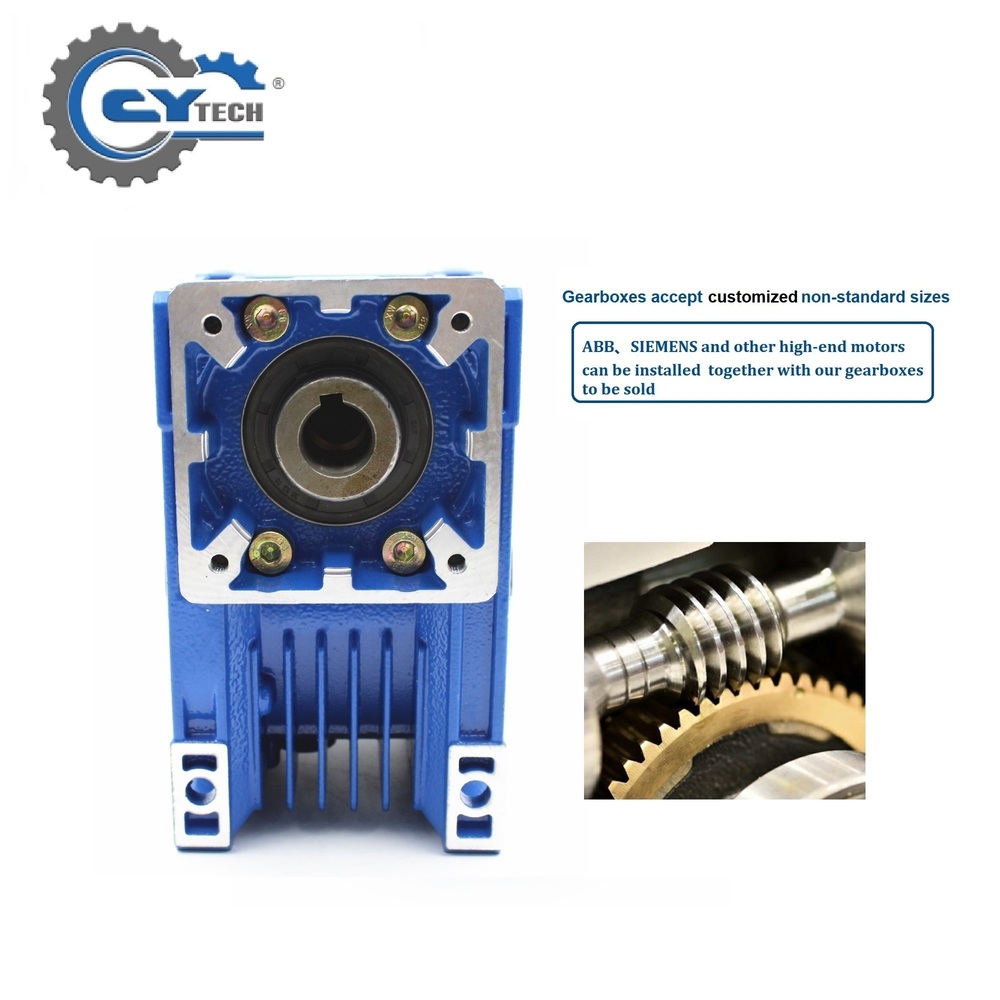

WORM WHEEL ADOPTS HIGH QUALITY TIN Bronze LONG SERVICE LIFE AND MORE DURABILITY

Factory outletprovide video factory inspection

Speed ratio range from 51to 1001

Input shafthole 141922 24

Output shafthole 25

Rated Input Speed 1450rpm

Output Speed 290rpm

Rated Input motor 025kW15kW

Output Torque Range 50Nm167Nm

Colors Blue or gray or green or according to customer required

Diecast aluminum alloy housing

CertificationRoHSCEIAFCNASISO9001ISO45001ISO14001

Flange round or square

Delivery time 50 daysfor ready goodswe can deliver them within 2days

Approximate gross weight 68 Kgpc

Key benefits

Maintenancefreefully sealedno need fill oil for whole life

Good heat dissipationlow temperature rise

Low noise smooth operation

Energy saving and high efficiency

Can be installed in any position and in all directions

Builtin fully synthetic lubricant no breather plug

Tip

The whole worm gearbox is warranted for one year

The starting date of the warranty period is subject to the date of the

product invoice please present the invoice when repairing

Beyond the warranty period or does not belong to the free warranty

products the companys maintenance center is still dedicated to serve you

Contact detail

If you need special customization or have requirements for delivery time please contact sales manager daiyichinachenyuecom WhatsApp 86 173 5260 0137 M 86 173 5260 0137 Service 86 400 019 2928

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'CYRV Series Worm Gearbox' category

CHENYUE High Torque Worm Gearbox NMRV 30 CYRV30 Gearbox Input 9/11mm Output 14mm Speed Ratio from 5:1 to 80:1 Free Maintenance Price : 29.99 USD ($)/Piece Minimum Order Quantity : 3 Product Type : CYRV30 0.18 KW Worm Gearbox Gear Type : r, ', r, ', Worm Gears Gearing Arrangement : ', ', Worm Length : 20.5 Centimeter (cm) Efficiency : High Material : ', ', Iron Processing Type : ', i, i, ', Die Casting Color : blue,green,gray Weight : 2.2 Kilograms (kg) Width : 17.5 Centimeter (cm) Height : 22.5 Centimeter (cm) Size : 20.5*17.5*22.5 Rated Power : 0.06kW0.18kW Usage : Industrial Output Torque : 5N m21N m Nm

Send Inquiry

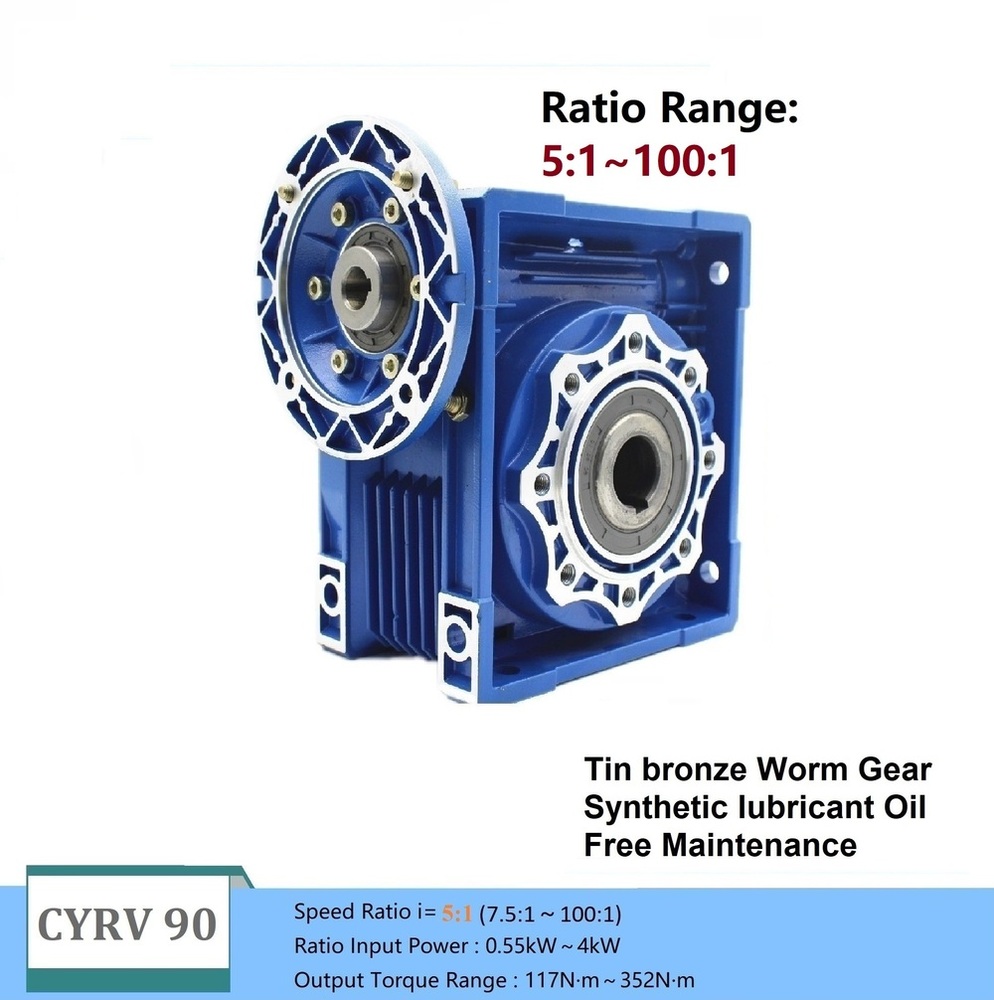

CHENYUE Worm Gearbox Reducer NMRV 90 Sliver Suppliers Input19/22/24/28mm Output 35mm Speed Ratio from 5:1 to 100:1 Free Maintenance Price : 131.99 USD ($)/Piece Minimum Order Quantity : 3 Product Type : CYRV90 4 KW Worm Gearbox Gear Type : Worm Gears Gearing Arrangement : Worm Length : 33.5 Centimeter (cm) Efficiency : High Material : Other Processing Type : Die Casting Color : blue,green,gray Weight : 15 Kilograms (kg) Width : 32.5 Centimeter (cm) Height : 42 Centimeter (cm) Size : 33.5*32.5*42 Rated Power : 0.55kW4kW Usage : Industrial Output Torque : 117Nm352Nm Nm Gear Tooth Profile : Other

Send Inquiry

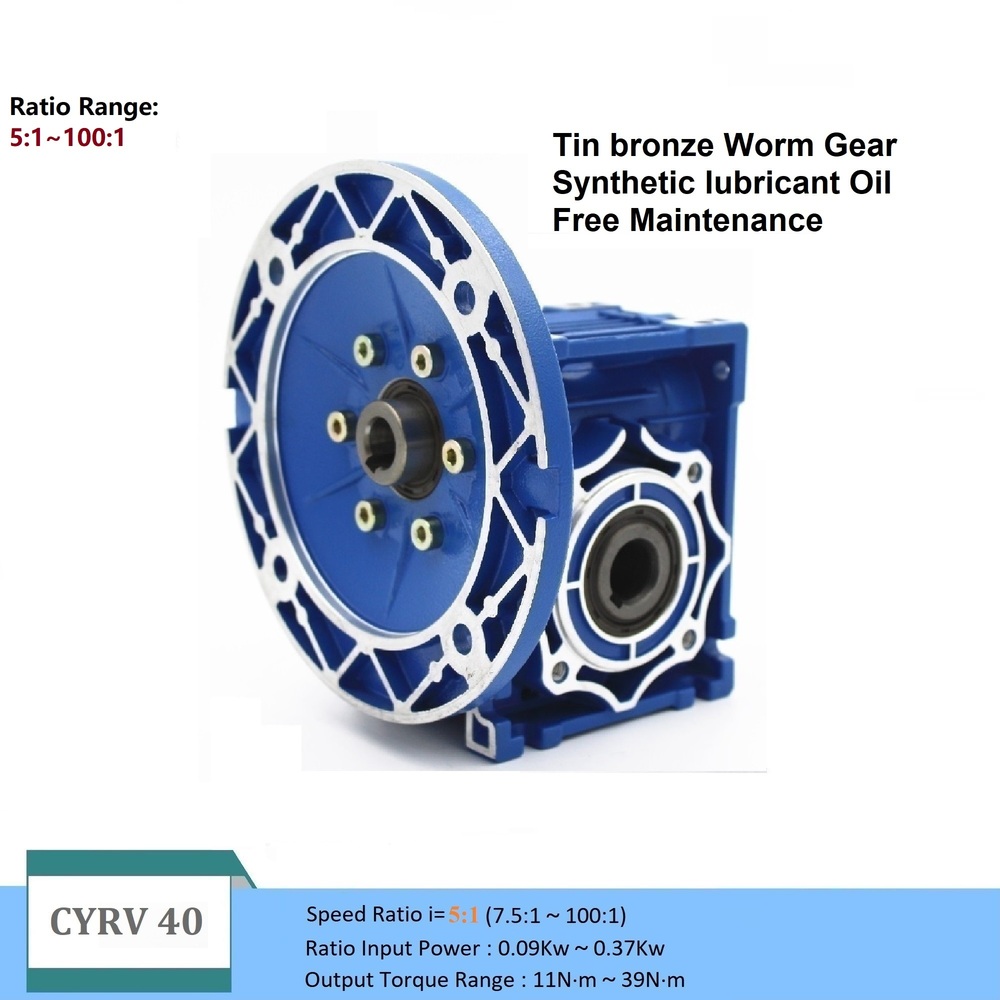

CHENYUE Worm Gearbox Reducer NMRV 040 CY Series Input 14/11/9mm Output 18mm Speed Ratio from 5:1 to 100:1 Free Maintenance Price : 38.99 USD ($)/Piece Minimum Order Quantity : 3 Product Type : CYRV40 0.37 KW Worm Gearbox Gear Type : Worm Gears Gearing Arrangement : Worm Length : 23 Centimeter (cm) Efficiency : High Material : Other Processing Type : Die Casting Color : blue,green,gray Weight : 4.8 Kilograms (kg) Width : 19.5 Centimeter (cm) Height : 25.5 Centimeter (cm) Size : 23*19.5*25.5 Rated Power : 0.09kW0.37kW Usage : Industrial Output Torque : 11N.m39N.m Nm Gear Tooth Profile : Other

Send Inquiry

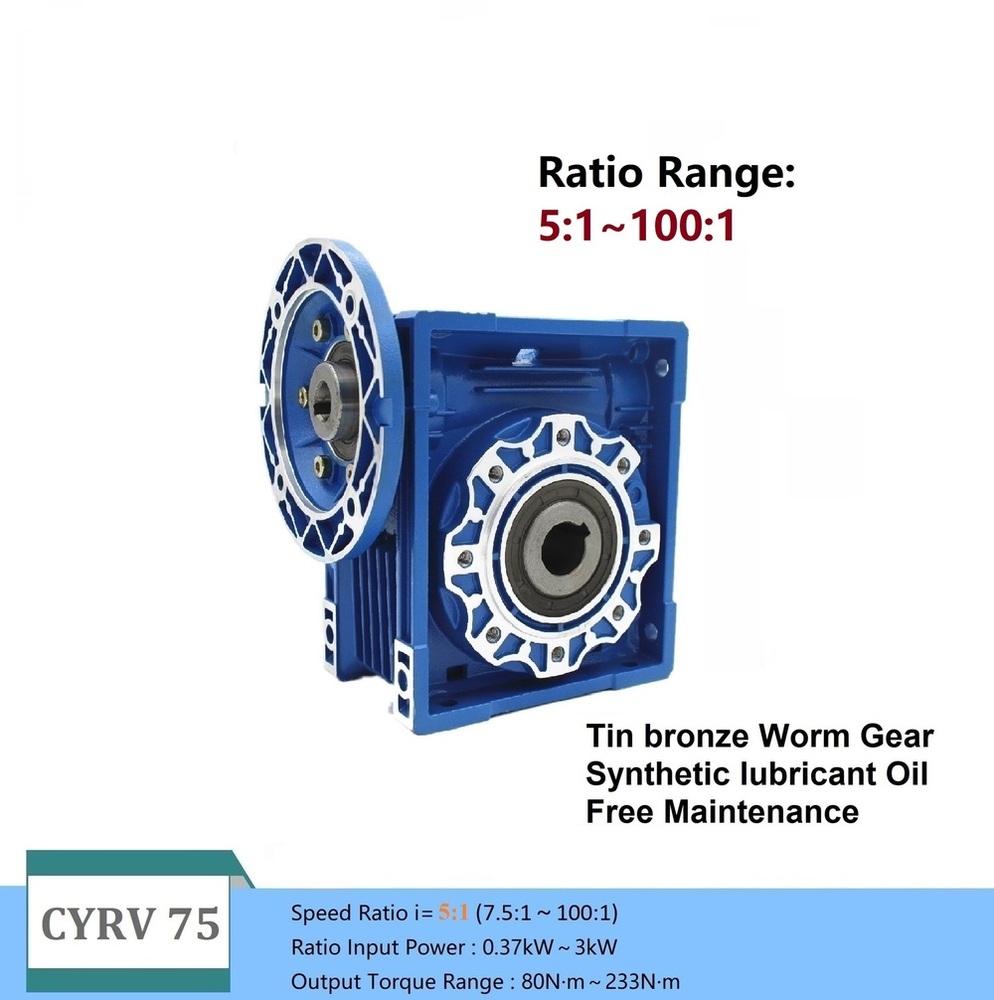

CHENYUE Worm Gearbox NMRV75 NMRV075 Input 19/22/14/24/28mm Output 28mm Speed Ratio from 5:1 to 100:1 Speed Reduction Free Maintenance Price : 92.99 USD ($)/Piece Minimum Order Quantity : 3 Product Type : CYRV75 3 KW Worm Gearbox Gear Type : Worm Gears Gearing Arrangement : Worm Length : 30.5 Centimeter (cm) Efficiency : High Material : Iron Processing Type : Die Casting Color : blue,green,gray Weight : 10.5 Kilograms (kg) Width : 29.5 Centimeter (cm) Height : 38 Centimeter (cm) Size : 30.5*29.5*38 Rated Power : 0.37kW3kW Usage : Industrial Output Torque : 80N.m233N.m Nm Gear Tooth Profile : Other
